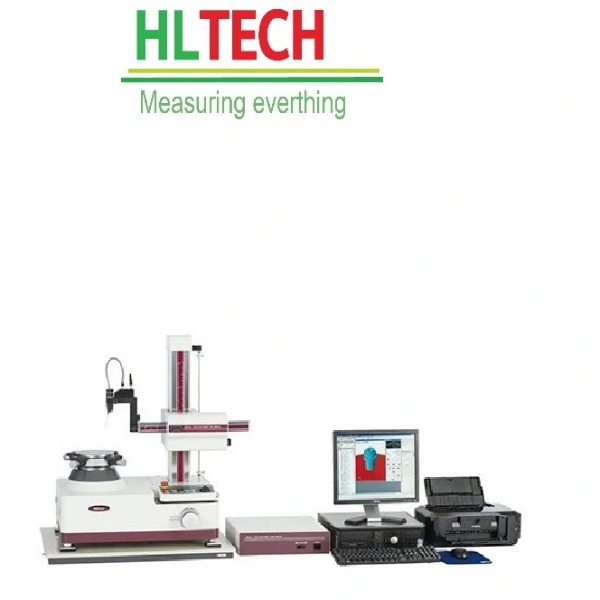

| Model No. | RA-1600 | ||
|
Turntable |
Rotational accuracy (JIS B 7451-1997) | Radial direction | (0.02 + 6H/ 10000) µm H: Probing height (mm) |
| Axial direction | (0.02 + 6X/ 10000) µm X: Distance from the center of rotation (mm) | ||
| Maximum loading mass | 25 kg | ||
| Maximum probing diameter | ø280 mm | ||
| Vertical movement (Z-axis column unit) | Vertical travel | 300 mm | |
| X axis | Travel range | 165 mm (-25 mm to +140 mm from the rotation center) | |
| Detector | Measuring range | Standard | ±400 µm/ ±40 µm/ ±4 µm |
| Tracking | ±5 mm | ||
