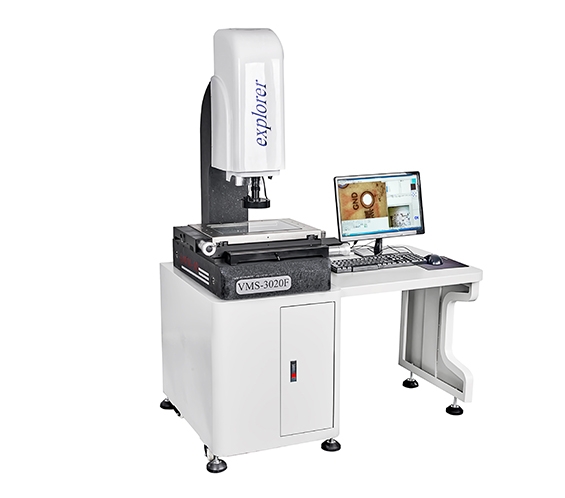

Máy đo kích thước 2D 3D thủ công
Model: VMS-3020G
Hiệu: Exflorer
Hãng sản xuất: Wangmin
Dải đo: 300*200*200 mm
Độ phân giải: 0.0001 mm = 0.1 um
Cấp chính xác: 0.003mm =3 um
Kích thước ngoài: 600MM*750MM*1100MM
Trọng Lượng: 260 kg
| Specification parameters | VMS-3020G | |
| workbench | X / Y axis stroke | 300MM*200MM |
| Z-axis stroke | The effective space is 245mm, the focusing stroke is 200mm, and the working distance is 95mm | |
| Metal table size | 450MM*350MM | |
| Glass table size | 330MM*230MM | |
| drive system | X / y optical rod drive, z-axis optical axis drive | |
| Measurement servo drive system | Resolution of optical ruler: X / Y / Z axis 0.0005mm (0.5um) | |
| Measurement accuracy: ≤ 3um + L / 200 repetition accuracy: ≤ 3um + L / 200 | ||
| Multifunctional data processor can measure point, line, circle, angle, etc | ||
| Imaging system | Camera: Japan Sony 1 / 3 "CCD camera, magnification 30-230x | |
|
Continuous zoom lens: NAV HD zoom lens / / continuous magnification 0.7-4.5x When 0.5x objective is available, the total magnification is 15-115x When 2x objective is optional, the total magnification is 60-460x |
||
| Light source system | Surface light source and transmission light source LED cold light source, long life, adjustable brightness | |
| Instrument dimensions (L * w * h) | 600MM*750MM*1100MM | |
| Instrument weight (kg) | 260KG | |
