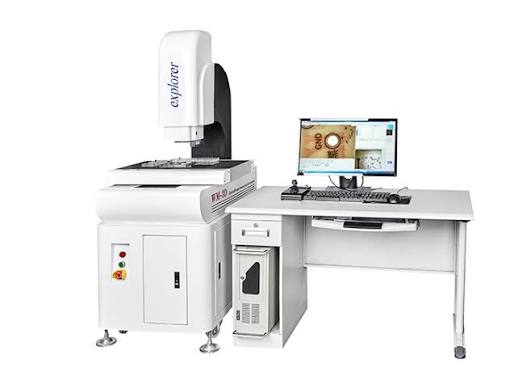

Máy đo 2D 3D
Model: CNC-5040AH
Hãng sản xuất: Wangmin
Hiệu: Exflorer
Dải đo: 500*400*200 mm
Độ phân giải: 0.0001 mm = 0.1 um
Cấp chính xác: 0.003mm =3 um
Kích thước ngoài: 950*1050*1650 mm
Trọng Lượng: 450kg
| Specification parameters | CNC-4030AH | |
| workbench | X / Y axis stroke | 400*300mm |
| Z-axis stroke | The effective space is 245mm, the focusing stroke is 200mm, and the working distance is 95mm | |
| Metal table size | 650MM*550MM | |
| Glass table size | 530MM*430MM | |
| drive system | X / Y / Z axis imported precision linear guide and imported grinding ball screw | |
| Measurement servo drive system | Resolution of optical ruler: X / Y / Z axis 0.0005mm (0.5um) | |
| Measurement accuracy: ≤ 2.5um + L / 200 repetition accuracy: ≤ 2.5um + L / 200 | ||
| X / Y / Z three axis Taiwan high performance servo motor, double closed loop control system | ||
| Imaging system | Camera: Japan Sony 1 / 3 "CCD camera, magnification 30-230x | |
|
Auto zoom lens: NAV HD zoom lens / / continuous magnification 0.7-4.5x When 0.5x objective is available, the total magnification is 15-115x When 2x objective is optional, the total magnification is 60-460x |
||
| Light source system | Surface light source and transmission light source LED cold light source, long life, adjustable brightness | |
| Instrument dimensions (L * w * h) | 950*1050*1650 mm | |
| Instrument weight (kg) | 450kg | |
