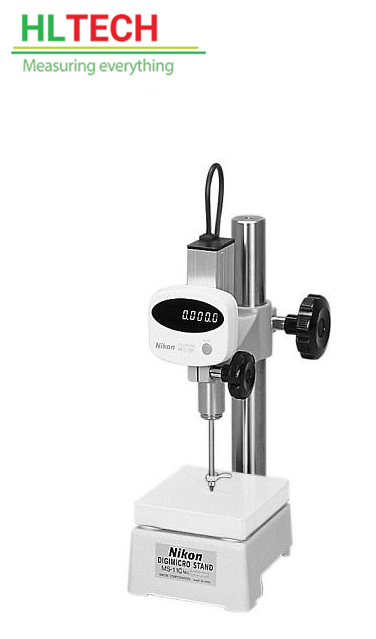

THƯỚC ĐO CAO ĐIỆN TỬ DIGIMICRO NIKON MF-501

Highlights
Measuring length equal to 50mm
Accuracy of 1 micron at 20°C
Readings as small as 0.1 µm or even 0.01 µm can be made depending on the counter
RS-232 and printer output are standard features

TC-101 counter
More compact and accurate than previous models
Smallest readable value is 0.01µmCan be used with old-type digital micrometers and rotary encoders
Superior cost performance
RS-232C output and printer output are standard features

MFC-101 counter
A compact, single shaft counter for exclusive use with the MF-501 and MF-1001 with display and resolution switching, direction switching, and display unit switching functions
Can be attached to the head or placed outside
RS-232C output and printer output are standard features

Specifications

Readable travel: 50 mm (2”)Minimum readout value: 0.1 µm (switchable determined by the counter used)

Measuring angle: Useable in down or sideways position

Measuring force – variable: Down 115-165 gf; Lateral 66-125 gf

Response speed: 500 m/second or better

TC-101 Table-top Counter tech specs:

• Inches/mm: Inch or Metric (switchable)
• Display: 10-segment LED display
• Minimum readout: 0.01, 0.05, 0.1, 0.5, 1.0 micron (0.0000005″, 0.000002″, 0.000005″, 0.00002″, 0.00005″) dip switch on back
• Functions: Zero reset button on front, preset, pulse check, zero blanking
• RS232: RS232 output (with optional cable)
• Power: 12 V DC adapter – available in 120 V or 240 V models
• Optional: Extension cable 2 m (6 ft) counter to Digimicro head

MFC-101 Compact Counter tech specs:

• Mounting: Can be mounted directly on the Digimicro
• Inches/mm: Inch or Metric (switchable)
• Display: 7-segment LED display
• Minimum readout: 0.1, 0.5, 1.0 ,ocrpm (0.000005″, 0.00002″, 0.00005″) setting by switch on back
• Reset: Zero reset button on front
• RS232: RS232 output (with optional cable)
• Power: 12 V DC adapter – available in 120 V or 240 V models
