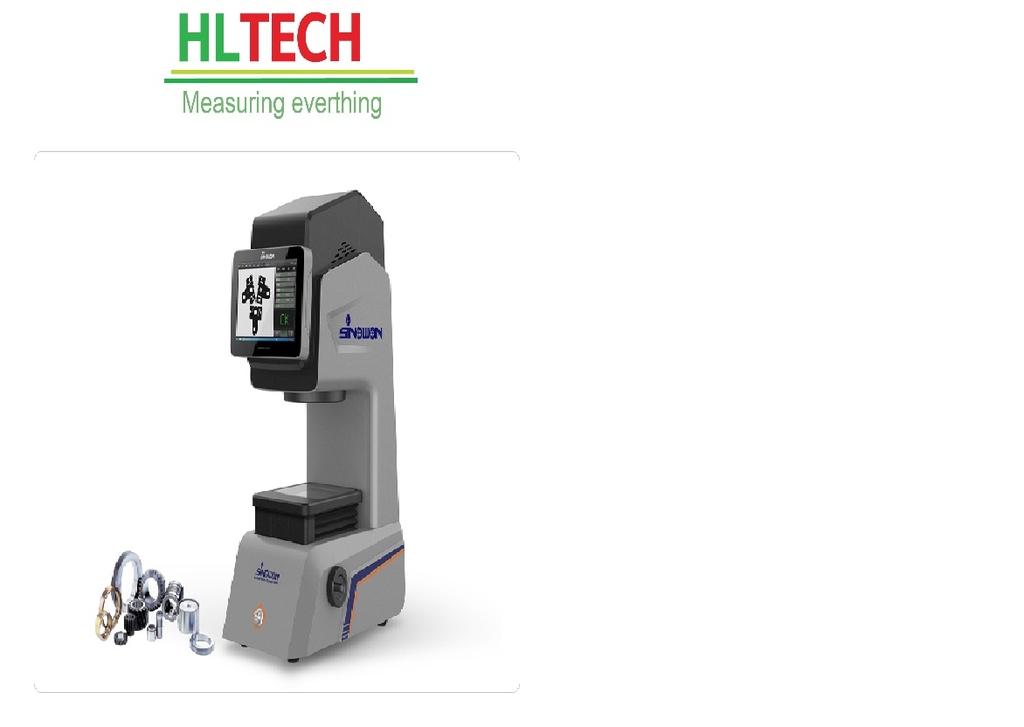

| Model |
iVS-30 |
iVS-60 |
iVS-80 |
iVS-160 |
| Code# |
500-030 |
500-060 |
500-080 |
500-160 |
| Lens |
0.3X Double Telecentric Lens |
0.17X Double Telecentric Lens |
0.088X Double Telecentric Lens |
0.088X Double Telecentric Lens |
| Working Distance |
110 mm |
110 mm |
120 mm |
390mm |
| Wide Field |
Ø 30mm(28×24) |
Ø 60mm(56×50) |
Ø116mm(94×76) |
Ø229.6mm(146.7×110) |
| Measurement Accuracy |
±2um |
±3um |
±4um |
±7um |
| Repeatability Accuracy |
±1um |
±2um |
±2um |
±5um |
| Camera |
2/3’’ 5 million pixel B/W camera (Ethernet) |
| Illumination |
Digital controls, automatic memory |
| Telecentric Green LED Contour illumination |
| Ring White LED illumination |
| PC System |
DELL (I5 Intel processors) |
| Monitors |
Built-in 10.4 inch LCD Monitor(1920*1080) |
| External 21.5 inch LCD Monitor(1920*1080) |
| Measuring Software |
iMeasuring 2.0 |
| Measuring Amount |
Max.99 |
| Test Time |
<5S (Less than 100 tests) |
| Output data |
Test data, reports, determine the results (OK, NG, WAIT), etc |
| Function |
2D measurements: points, lines, circles, arcs, angles, distance, oval, O-rings, Groove, rectangle, parallelism |
| Auxiliary Function |
Intersection, parallel, perpendicular, tangent, bisection. |
| Geometric Tolerances |
Dimension tolerances and position tolerances, tolerances of form and position (Point position concentricity, straightness, parallelism, roundness, straightness, profile, etc) |
| Measurement Mode |
Manual / Automation |
| SPC Data Management and Control |
√ |
| CAD Data Input / Output |
√ |
| Power Supply |
AC100~240V，50~60Hz |
