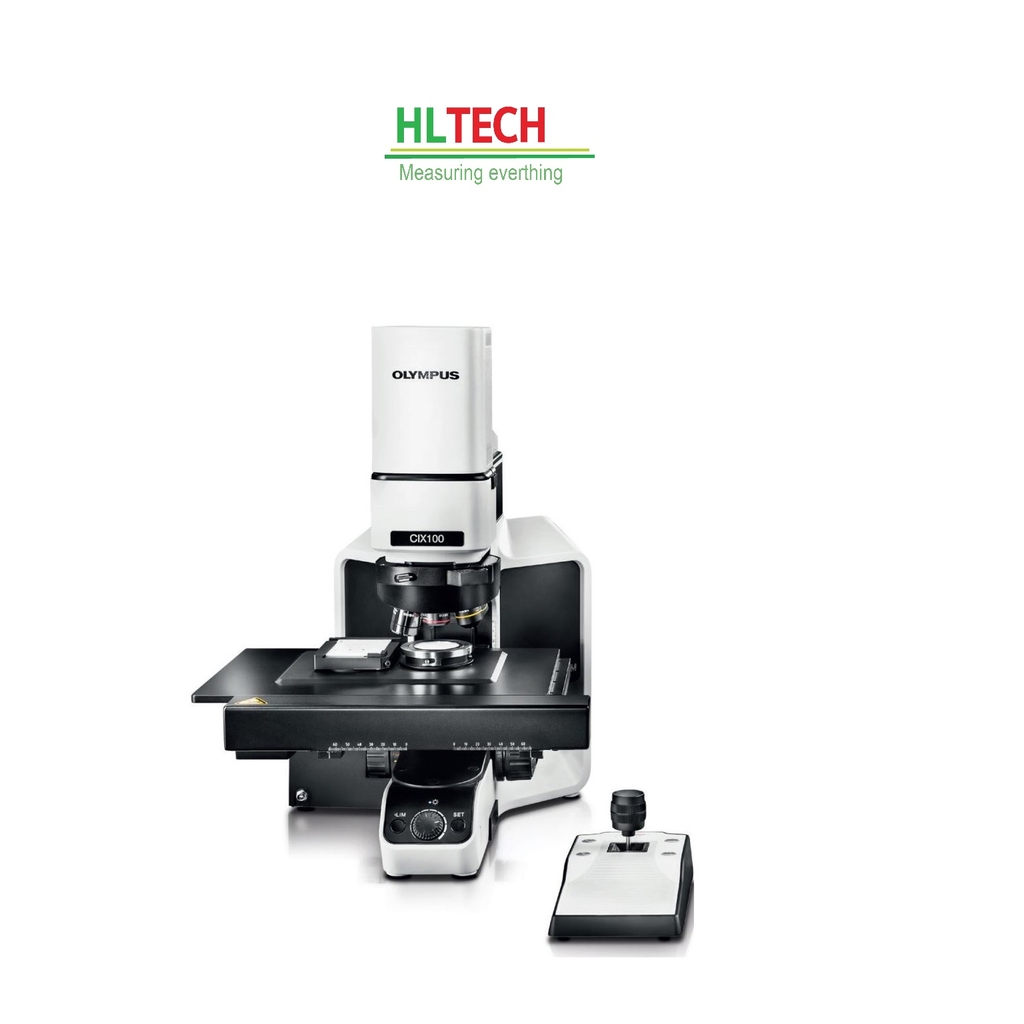

| Microscope | OLYMPUS CIX100 | Motorized focus | Coaxial motorized fine focus with 3 axis joystick |
| Focus stroke 25mm | |||
| Fine stroke 100 µm / rotation | |||
| Maximum height of stage holder mounting : 40 mm | |||
| Focus speed 200 µm/sec | |||
| Software autofocus enabled | |||
| Customizable multi-point focus map | |||
| Illumination | Built-in LED illumination | ||
| Innovative illumination mechanism with simultaneous detection of reflecting and non-reflecting particles | |||
| Light intensity controllable by software | |||
| Imaging device | Color CMOS USB 3.0 camera | ||
| On chip pixel size 2.2 x 2.2 µm | |||
| Sample height | Sample is limited to filter membrane (diameter 42 mm) mounted into the provided filter holder. | ||
| Nose piece | Motorized type | Motorized Nosepiece | 6 positions motorized nosepiece with 3 UIS2 objectives already installed |
| PLAPON 1.25X used for preview | |||
| MPLFLN 5X used for detecting particles bigger than 10 µm | |||
| MPLFLN 10X used for detecting particles bigger than 2.5 µm | |||
| Software controlled | The image magnification and relation between pixel and size is known at every moment. | ||
| Selected objectives are used at selected steps into the measurement process, objectives are automatically positioned | |||
| Stage | Motorized stage X,Y | Motorized stage X,Y | Stepper motors controlled movement |
| Maximum range : 130 x 79 mm | |||
| Max speed 240 mm/s (4 mm ball screw pitch) | |||
| Repeatability < 1µm | |||
| Resolution 0.01 µm | |||
| Controllable with 3 axis joystick | |||
| Software controlled | Scanning speed is depending on the used magnification, at 10x the scanning speed is less than 10 minutes | ||
| Stage alignment is performed at factory assembly | |||
| Specimen holder | Sample holder | Membrane holder is specially designed to avoid an unwanted rotation of the membrane during the mounting | |
| The membrane is mechanically flatten by the membrane holder | |||
| No tool is needed to fix the cover | |||
| The sample holder is always assigned the slot 1 on the stage | |||
| Particle Standard Device (PSD) | Reference sample used to validate the system measurement | ||
| Sample used in the check system built-in function for controlling the proper function of the CIX | |||
| The PSD is always assigned slot 2 on the stage | |||
| Stage insert | 2-Position stage insert | Stage insert dedicated to the right positioning of the sample holder and the PSD | |
| Controller | Workstation | High-Performance pre-installed workstation | HP Z440, Windows 10-64 bit Professional (English) |
| 16 GB RAM, 256 GB SSD and 4 TB data storage | |||
| 2GB video adapter | |||
| Microsoft Office 2016 (English) installed | |||
| Networking capabilities, English qwerty keyboard, optical mouse 1000 dpi | |||
| Add-in boards | Motorized controller, RS232 serial and USB 3.0 | ||
| Language selection | Operating system and Microsoft Office default language can be changed by the user | ||
| Touch panel display | 23 inch slim screen | Resolution 1920×1080 optimized for use with the CIX software | |
| Power | Rating | AC adapter (2), Controller and Microscope frame (4 plugs necessary) | |
| Input: 100-240V AC 50/60Hz, 10 A | |||
| Power consumption | Controller: 700 W; Monitor: 56 W; Microscope: 5.8 W; Control Box 7.4 W | ||
| Total: 769.2 W | |||
| Drawing | Dimensions (W × D × H) |
Approx. 1300 mm × 800 mm × 510 mm | |
| Weight | 44 kg | ||
