Điện áp ngõ vào : 100-500Vac
Dải tần số: 40Hz-400Hz
Chiều dài cáp: Khoảng 1m
Kích thước: 128(L) x 72(W) x 44(D)mm
Trọng lượng gồm pin 220g
Nguồn: 9V (6F22) × 1
Tiêu chuẩn an toàn: EN 61010-1 CAT III 500V
EN 61326-1 EN 61557-1
EN 61557-7
Phụ kiện:sách hướng dẫn,que đo,túi đựng,pin
| FEATURES |

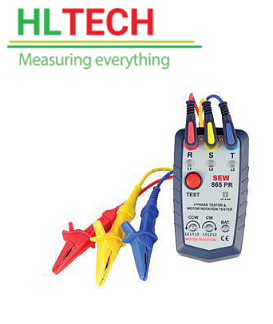

● The 865 PR is a detector with LEDs to show the de-
tection better visible than neon.
● Three functions in one unit, including open phase,
phase sequence and 3 phase motor rotation.
● Designed for checking a wider range of 3 phase
power source from 100V to 500V.
● Indicates R.S.T LEDs which frequency range from 40Hz to 400Hz.
● Wide range detection of motor frequency range from 2Hz to 400Hz.
● Fixed magnets for convenient measurement. |
| |
| SPECIFICATIONS |
| |
|
|
| Measurement principle |
Contact Live Wire |
| Input voltage |
100-500Vac |
| Frequency range |
40Hz-400Hz |
Operating temperature
& humidity |
0°C ~ 40°C Max. 80% R.H. |
Storage temperature
& humidity |
-10°C ~ 50°C Max. 80% R.H. |
| Cable length |
Approx. 1m |
| Dimensions |
128(L) x 72(W) x 44(D)mm |
Weight
(battery included) |
Approx. 220g |
| Power source |
9V (6F22) × 1 |
| Safety standard |
EN 61010-1 CAT III 500V
EN 61326-1 EN 61557-1
EN 61557-7 |
|
|
|
|
| |
|
|
|
|
