Hãng sản xuất: | NOISEKEN |

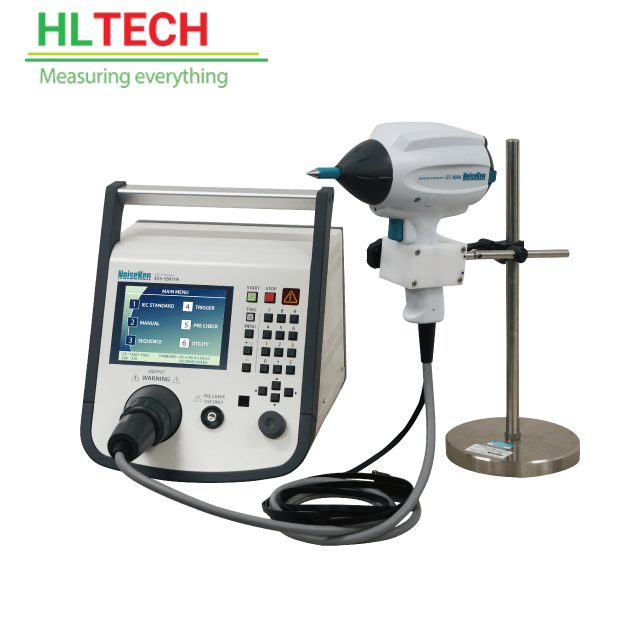

Model: | ESS-S3011A & GT-30RA |
Polarity : Positive / Negative
Output voltage : 0.20 kV ~ 30.0 kV ± 5% (30.5 kV max) *0.20kV〜1.99kV ±10% 2.00kV〜30.0kV ±5%
~ 10.0 kV : 0.01 kV step ~ 30.0 kV : 0.1 kV step
Repetition cycle : 0.05s ~ 600s ±10% / Manual
Set step : 0.01s (0.05 ~ 9.99s), 0.10s (10.0 ~ 600.0s)
Discharge number of times : 1 ~ 60,000 times, Preset 1 time step or continuous preset
Discharge mode : Contact discharge / Air discharge
Radiation level mode : NORMAL mode / EXTRA mode
Trigger mode : Gun trigger / Main trigger / External trigger
Operation panel : Color LCD / Push-buttons (Partially lighting)
Gun holder : Standard attached (to hold the discharge gun Model GT-30RA)
Radiation mode select switch : Extra / Normal switching function built-in
Discharge detection : Discharge detection function in air-discharge equipped
Pre-checking function : Following 3 steps function equipped (by user operation. Not the calibration but just checking)
STEP1 : High voltage output checking
STEP2 : Withstanding voltage checking
STEP3 : Discharge relay operation checking
CR & Gun head checking :CR constant and gun head recognizable
(indication to prevent a wrong combination)
"IEC STANDARD" test mode : Contact discharge mode : 2.0 kV, 4.0 kV, 6.0 kV and 8.0 kV steps
Air discharge mode : 2.0 kV, 4.0 kV, 8.0 kV and 15.0 kV steps
"MANUAL" test mode : Contact / Air discharge mode, Arbitrary setting 0.2 kV ~ 30.0 kV
Sweeping function built-in, Recordable up to 99 units
"SEQUENCE" test mode : Enables to operate units set in MANUAL mode continuously.
Max. 22 steps / 1 program and the programs recordable up to 20.
Warning lamp : Lighting at voltage output from the generator.
Blinking at electro-static discharging
Charge capacitor / resistor : 150 pF±10%, 330Ω±10% (Built-in CR unit for discharge gun GT-30RA)
Charge resistor in generator : 10 MΩ (Totally 53Ω in combination with 43 MΩ in discharge gun)*
AUX connector : D-SUB 15 pins female connector
(for connecting to patolight, automated ESD eliminator,
external interlock input, external trigger input terminal)
Optical communication : Optical connector (serial interface) for connecting to PC connector
Power supply / consumption : AC100 V ~ AC240 V 50 Hz / 60 Hz ±10% 75VA
Dimensions : Generator : (W)392 mm x (H)312 mm x (D)295.3 mm (gun holder included)
Discharge gun : (W)83.3 mm x (H)217.2 mm x (D)229.3 mm
Weight : Generator : approx. 7.5 kg (with Gun Holder)
Discharge gun : approx. 800 g (cable and connector excluded)
Details of GT-30RA discharge gun: Discharge gun (with discharge cup 330 Ω test), CR unit 06-00073B (150 pF – 330 Ω), discharge tips ( conical / round)
